The Ultimate Dana 60® Semi-Float Axle

PROBLEM
"I want to upgrade to an Ultimate Dana 60^® axle, but it has an 8-bolt wheel-end pattern while my stock semi-floating axle has a 5-bolt pattern; I’d have to invest in a brand-new 8-bolt wheel and brake package!"

SOLUTION
The Ultimate Dana 60^® Semi-Float Axle delivers all the benefits—like Spicer^® ring and pinion gearing, heavy-duty brackets, and more—and all the convenience of adhering to a semi-floating axle design: get a direct-fit, bolt-in solution and reuse your wheels and brakes.

For a direct-fit solution that’s built for superior strength, Dana now offers the Ultimate Dana 60^® Semi-Float Axle for the Jeep Wrangler JK, JL and the Gladiator JT. You can get all the benefits of the celebrated Ultimate Dana 60^® axle—like Spicer^® chromoly steel axle shafts, Spicer ring and pinion gearing, a nodular iron diff cover, heavy-duty brackets, and more—while enjoying optimum weight capability.

If you’re upgrading from a stock semi-float, you can reuse all of your wheels and brakes! These semi-float axles are also a perfect choice to match up with an Ultimate Dana 44™ front axle, which allows you to reuse factory 5-lug hubs. Get added strength and peace of mind when navigating extreme terrain with the Ultimate Dana 60^® Semi-Float Axle.

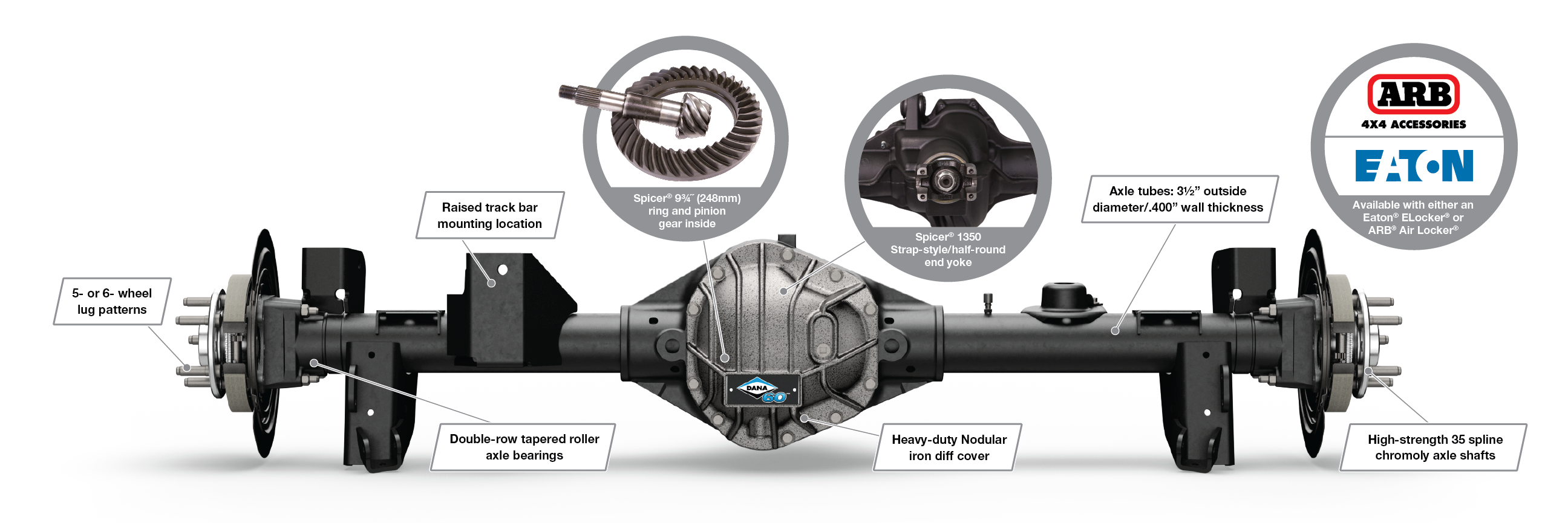

• Double-row tapered roller axle bearings deliver crucial strength and weight capability
• 5- or 6- wheel lug patterns: reuse your wheels when updating from a stock semi-float
• High-strength 35 spline chromoly axle shafts for durability and improved off-road performance
• Nodular iron differential cover provides better protection from obstacles and an eye-catching design
• Fully ABS compatible
• 3 1/2" × 11/32" tubing and heavy-gauge brackets for added strength
• Eaton E-locker or ARB Air Locker options for the ultimate custom selectable traction
• Five ratio options deliver the best setup for your unique rig

The Iconic Ultimate Dana 60^® Axle, Reimagined with a 5- or 6-Bolt Pattern
